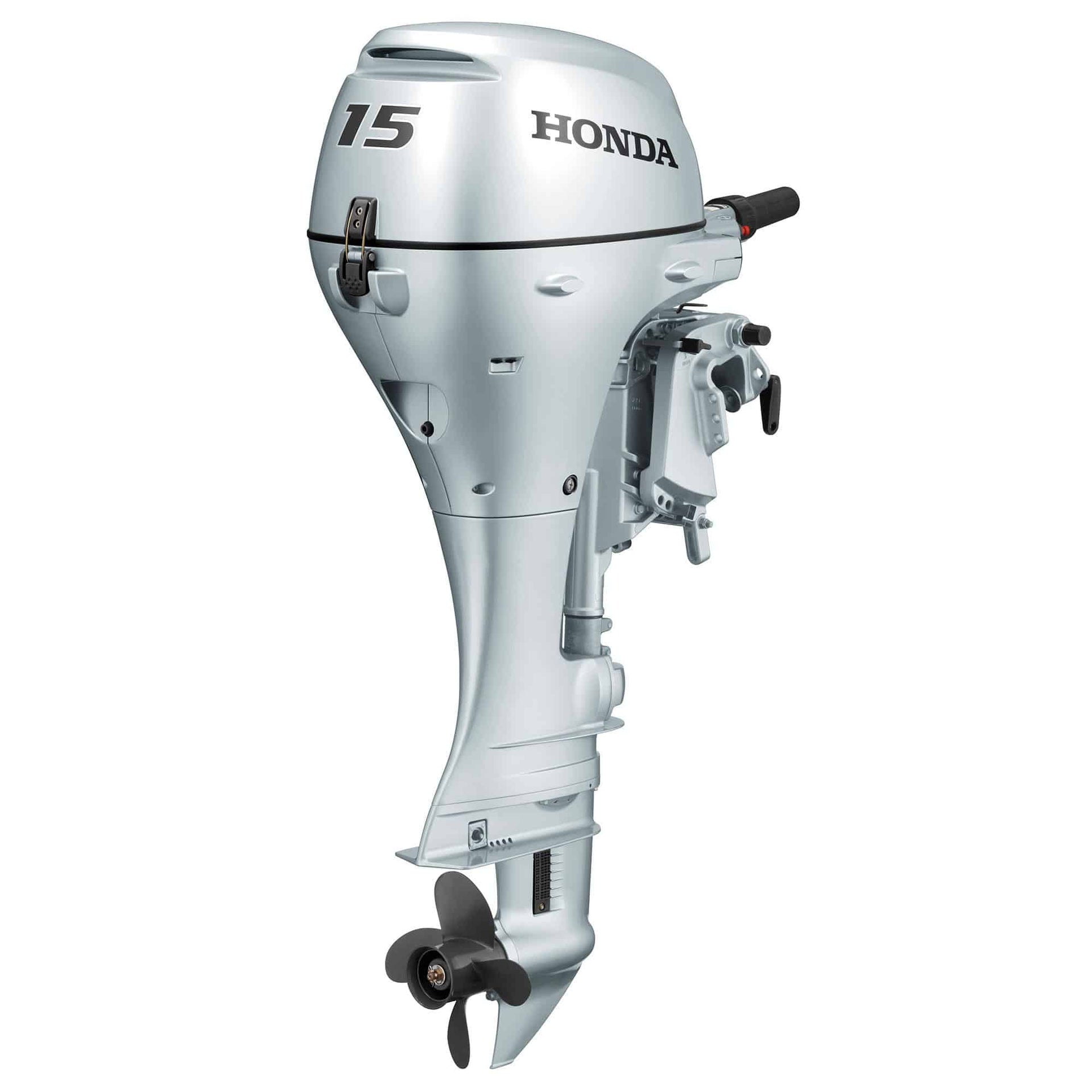

Honda 15hp 4-Stroke Extra Long Shaft Outboard Engine

Description

Honda BF15 Outboard Engine Overview

The Honda 15hp 4-Stroke Extra Long Shaft Outboard Engine belongs to Honda Marine’s portable BF15 outboard range, which is designed to combine useful horsepower with a relatively compact and manageable package.

The BF15 uses a 350cc four-stroke, SOHC twin-cylinder engine with four valves. Honda lists the BF15 with a rated output of 15hp at 5,000 RPM and a full-throttle operating range of 4,500–5,500 RPM.

Its portable format makes the engine suitable for a variety of smaller boats where owners want a balance between propulsion capability, manageable weight, and practical installation.

The Extra Long Shaft configuration is particularly important for boats with a taller transom. Honda’s official BF15 specifications identify the X-type configuration with a 25-inch transom height, so buyers should verify their boat’s transom requirements before ordering.

Performance and Boating Applications

The BF15 is designed for boaters who need useful mid-range outboard power without moving into the larger and heavier high-horsepower categories.

Its 15hp output makes it suitable for compatible small fishing boats, utility boats, tenders, aluminum boats, inflatables, and other vessels whose manufacturer permits a 15hp outboard.

The engine’s 350cc displacement provides a useful combination of torque and operating efficiency. Honda describes the BF15/BF20 platform as using a relatively large displacement for its class, with the long-stroke design supporting torque throughout the RPM range.

Actual boat performance will depend on hull design, vessel weight, passenger and equipment load, propeller selection, water conditions, and the boat’s maximum rated horsepower.

Engine Design and Starting System

The BF15 uses a 4-stroke SOHC twin-cylinder configuration with a 350cc displacement. The engine is water-cooled and uses a single carburetor for fuel delivery. Honda specifies PGM-IG ignition and both electric/recoil starting availability for the BF15 platform.

Honda’s Programmed Ignition system uses microprocessor-controlled ignition timing to manage ignition during startup and across the operating range. This contributes to consistent engine operation and starting performance.

The supplied product information also highlights a decompression system designed to make starting easier. Together with Honda’s ignition system, this gives the BF15 a practical starting arrangement for everyday marine use.

Fuel Efficiency and Smooth Operation

A major advantage of a four-stroke outboard is the ability to deliver propulsion without relying on the operating characteristics of a traditional two-stroke engine.

Honda’s BF15 platform incorporates a three-stage carburetion system designed to improve fuel economy and provide smoother operation across different throttle positions. Honda describes the system as adding a third carburetion stage between idle and full-throttle operation.

The engine’s water-cooled design and wet-sump lubrication system further support its suitability for regular marine operation. Honda lists the BF15 with a 2.08:1 gear ratio and forward-neutral-reverse gear selection.

Fuel consumption in real-world operation will vary according to boat weight, speed, propeller selection, throttle setting, sea conditions, and load.

Handling, Controls, and Shallow-Water Operation

The BF15 incorporates several features intended to make everyday operation straightforward.

The supplied specification highlights a forward-mounted shift lever, soft-grip throttle, and twist-lock arrangement designed for convenient control from the operator’s position.

The outboard also supports shallow-water operation. Honda describes its shallow-water drive as allowing the motor to be tilted upward to reduce the risk of damage when operating in shallow areas.

The manual tilt configuration provides practical adjustment of the engine position, helping operators manage the lower unit and propeller when operating around shallow water or when the engine needs to be raised.

Corrosion Protection and Marine Durability

Marine engines operate in an environment where moisture, saltwater, and ultraviolet exposure can contribute to component deterioration. The supplied product information identifies Honda’s 4Front corrosion protection and UV-resistant coatings as part of the BF15’s durability-focused design.

Honda also emphasizes corrosion protection across its marine outboard range, using protective coatings, sacrificial anodes, stainless-steel components, and waterproof connectors on applicable models and configurations.

Long-term reliability still depends on appropriate maintenance, correct storage, proper flushing where applicable, and operation within the manufacturer’s specifications.

For saltwater applications, following Honda’s recommended maintenance procedures is particularly important.

Portable Design and Practical Installation

One of the strongest characteristics of the BF15 platform is its combination of 15hp output and portable construction.

Honda describes the BF15/BF20 as a portable outboard platform, with the BF15’s listed dry weight ranging from 47kg to 52kg depending on shaft configuration. The X-type BF15 is listed at 52kg, or approximately 115lb.

The foldaway handles referenced in the supplied product information further support easier handling when the engine is being moved or stored.

The Extra Long Shaft version should nevertheless be treated as an installation-specific configuration. Buyers should confirm that their boat’s transom height, mounting arrangement, steering system, and horsepower rating are compatible before purchase.

Who This Outboard Is Best For

The Honda 15hp 4-Stroke Extra Long Shaft Outboard Engine is well suited to boat owners, anglers, tender operators, and utility boat users who need dependable propulsion in a compact package.

It can be a strong choice for buyers looking for:

• 15hp four-stroke outboard power
• A 25-inch Extra Long Shaft configuration
• Compact and portable engine design
• Honda PGM-IG ignition
• Manual tilt and shallow-water capability
• A 350cc twin-cylinder engine

It is particularly important for Extra Long Shaft buyers to verify the boat’s transom height. The Honda BF15 X-type specification corresponds to a 25-inch transom height, making fitment confirmation essential.

Technical Specifications

Specifications are based on the supplied product information and Honda Marine’s official BF15 specifications.

Ordering, Fitment, and Support

Before purchasing a Honda 15hp 4-Stroke Extra Long Shaft Outboard Engine, buyers should confirm the boat’s maximum permitted horsepower and required transom height.

For this configuration, the 25-inch X-type shaft is an important fitment specification. A shaft that is too long or too short for the vessel can affect the relationship between the engine, propeller, and hull.

Buyers should also confirm the required steering and control arrangement, starting configuration, propeller requirements, and installation hardware for their particular boat.

For repower applications, providing the existing outboard model, shaft length, boat model, and transom height can help establish whether the BF15 configuration is appropriate.

Honda’s BF15 platform is also supported by an established manufacturer service and owner’s-manual system, providing useful documentation for maintenance and ownership.

Frequently Asked Questions

How much horsepower does the Honda BF15 produce?

The Honda BF15 produces 15hp at 5,000 RPM. Honda lists a full-throttle operating range of 4,500–5,500 RPM for the BF15. Its 350cc twin-cylinder four-stroke engine provides the propulsion capacity expected from a 15hp portable outboard.

What does Extra Long Shaft mean on the Honda BF15?

The Extra Long Shaft version uses Honda’s X-type configuration, designed around a 25-inch, or 635mm, transom height. This configuration is intended for boats requiring a taller transom than standard or long-shaft installations. Buyers should measure the boat and verify the manufacturer’s required shaft length before ordering.

Is the Honda BF15 a four-stroke outboard?

Yes. The Honda BF15 is a 4-stroke SOHC twin-cylinder outboard with four valves and 350cc displacement. Honda lists it as water cooled with a carburetor fuel-delivery system and PGM-IG ignition.

Does the Honda 15hp outboard have electric start?

Honda’s BF15 platform is available with electric/recoil starting, depending on the specific configuration. Honda lists a 12-amp alternator with voltage regulator on the electric-start version and a 6-amp system for the manual-start configuration.

Is the Honda BF15 suitable for shallow water?

Yes. The BF15 platform includes a shallow-water drive feature that allows the outboard to be tilted upward for operation in shallow areas. This helps reduce the risk of lower-unit or propeller damage when operating where water depth is limited.

How much does the Honda BF15 Extra Long Shaft weigh?

Honda lists the BF15 X-type configuration at approximately 52kg (115lb) dry weight. The exact weight can vary according to the specific equipment and starting configuration, so buyers should confirm the final specification of the unit being purchased.

What boats can use a Honda BF15 15hp outboard?

The BF15 can be used on compatible small fishing boats, utility boats, tenders, inflatables, and other vessels rated for 15hp propulsion. Suitability depends on the boat manufacturer’s horsepower limit, transom height, hull design, load, and installation requirements. The Extra Long Shaft version requires particular attention to the boat’s transom configuration.
