Description

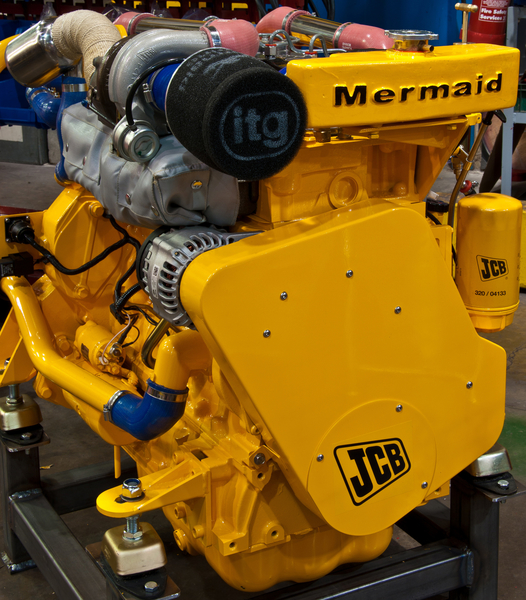

Mermaid J-444TCAE97 130HP – Professional Overview
The Mermaid J-444TCAE97 130HP Marine Diesel Engine is a new marine propulsion package intended for vessels requiring dependable four-cylinder diesel power.
With a rated output of 97 kW / 130HP at 2,200 rpm, the engine occupies a useful power range for a variety of inboard marine applications and repowering projects.
The engine is supplied brand new and crated, while the available configuration options allow the package to be adapted to the requirements of the vessel and its existing propulsion system.
Engine Design and Performance
The J-444TCAE97 uses a four-cylinder, 4.4-litre diesel configuration with turbocharging and intercooling.
Turbo-intercooled diesel technology allows the engine to produce its rated power from a relatively compact four-cylinder platform while supporting the demands associated with marine propulsion.
The specified maximum output is 130HP (97 kW) at 2,200 rpm, providing the power required for compatible vessels and repower applications.
Actual vessel performance will depend on hull design, displacement, propeller selection, gearbox ratio and the overall propulsion system.
Marine Cooling and Starting System
The supplied specification identifies freshwater cooling for the Mermaid J-444TCAE97.
Freshwater-cooled marine diesel engines use a controlled internal cooling circuit to maintain appropriate engine operating temperatures, while the complete marine installation must be matched to the vessel’s cooling and seawater arrangements.
The engine is also specified with electric starting, providing convenient engine starting from the vessel’s control system.
Gearbox and Installation Options
The J-444TCAE97 is offered with a wide range of gearbox options, giving boat builders and repower specialists flexibility when configuring the propulsion package.
The available options extend beyond the gearbox itself. Customers can also order adjustable engine mounts, calorifier connections and a PRM adaptor and coupling.
These options are particularly useful when replacing an existing engine, where the new engine needs to integrate with the vessel’s existing shaft line and propulsion arrangement.
Electrical and Control Configurations
The Mermaid J-444TCAE97 can be specified with either 12V or 24V electrical systems.
A Deluxe Control Panel is also available as an option, providing additional flexibility when configuring the engine’s control and monitoring system.
The correct electrical configuration should be selected according to the vessel’s existing electrical architecture and the requirements of the intended installation.
Repowering Applications
The Mermaid 130HP marine diesel engine is well suited to compatible inboard repowering projects.
Its 130HP output, four-cylinder configuration and available gearbox and installation options make it a practical candidate for vessels replacing an older diesel engine.
For a successful repower, the existing engine’s dimensions, shaft alignment, gearbox, propeller, electrical voltage and cooling arrangement should be assessed before final configuration.
Build Quality and Marine Integration
This engine is supplied as a brand-new crated marine package, rather than as a used or refurbished engine.
The supplied package can be configured with marine-specific components and installation options, allowing the engine to be prepared according to the requirements of the vessel.
Available options such as adjustable mounts, calorifier connections, PRM adaptor and coupling provide additional flexibility for professional installation.
Who This Engine Is Best For
The Mermaid J-444TCAE97 130HP Marine Diesel Engine is best suited to:
- Boat owners planning an inboard diesel repower
- Commercial and working vessels requiring 130HP-class propulsion
- Marine engineers and boatyards
- Owners replacing older four-cylinder diesel engines
- Installations requiring flexible gearbox and electrical configurations
Before ordering, buyers should confirm engine fitment, shaft-line requirements, gearbox selection and electrical configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Mermaid – NEW J-444TCAE97 130HP Marine Diesel Engine |
| Manufacturer | Mermaid / JCB |
| Model | J-444TCAE97 |
| Power Output | 130HP / 97 kW |
| Rated Speed | 2,200 rpm |
| Engine Configuration | 4-cylinder |
| Displacement | 4.4L |
| Induction | Turbo-intercooled |
| Fuel | Diesel |
| Cooling System | Freshwater cooled |
| Starter | Electric start |
| Engine Type | Inboard marine diesel |
| Condition | Brand new |
| Gearbox Options | Wide range available |
| Mounting Options | Adjustable mounts available |
| Electrical Options | 12V or 24V |
| Control Panel | Deluxe Control Panel available |
| Calorifier Connections | Available |
| PRM Adaptor & Coupling | Available |
| Package | Crated marine engine package |
Ordering and Support
The Mermaid J-444TCAE97 is supplied new and can be configured around the requirements of the intended vessel.
Because gearbox, electrical and installation specifications can vary between boats, buyers should provide as much information as possible about the existing propulsion system when requesting a configuration.
A wide range of gearbox options and additional installation components can be supplied on request.
Where a repower is involved, compatibility should be confirmed before ordering to ensure the selected engine, gearbox, controls and electrical system work correctly with the vessel.
Frequently Asked Questions
What is the Mermaid J-444TCAE97?
The Mermaid J-444TCAE97 is a 130HP four-cylinder marine diesel engine with a 4.4L displacement and turbo-intercooled configuration. It is designed for inboard marine propulsion and compatible repowering applications.
How much power does the J-444TCAE97 produce?
The engine is rated at 130HP, equivalent to 97 kW, at 2,200 rpm. Actual boat performance depends on factors including vessel weight, hull design, gearbox ratio and propeller selection.
Is the Mermaid J-444TCAE97 suitable for repowering?
Yes. The engine is offered as a new marine package and can be specified with different gearbox, mounting, electrical and coupling options, making it suitable for compatible marine repower projects.
What gearbox options are available?
A wide range of gearbox options is available for the J-444TCAE97. The appropriate gearbox depends on the vessel’s shaft system, reduction requirements, propeller and installation configuration.
Is the engine available with 12V or 24V electrics?
Yes. The J-444TCAE97 can be ordered with 12V or 24V electrical systems. A Deluxe Control Panel is also available as an option.
What cooling system does the engine use?
The supplied specifications identify the J-444TCAE97 as a freshwater-cooled marine diesel engine. The complete cooling installation should be configured according to the requirements of the vessel.
What is included with the engine package?
The standard supplied package is a brand-new crated J-444TCAE97 130HP marine diesel engine. Flexible configuration options include adjustable mounts, calorifier connections, 12V or 24V electrics, Deluxe Control Panel, PRM adaptor and coupling, as well as gearbox options.
