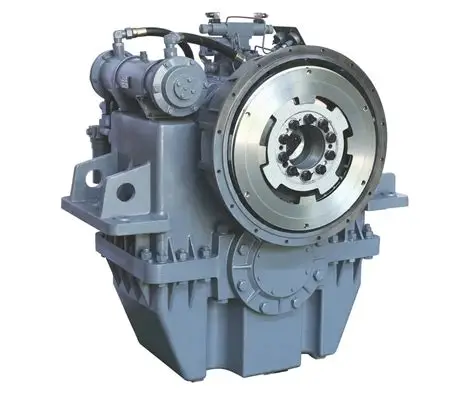

NEW Advance HCD800 Heavy Duty Marine Gearbox 3.42:1 Reduction

Description

Advance HCD800 Heavy Duty Marine Hydraulic Gearbox For Commercial Applications

Available in the following ratio options:

3.42:1 (0.85hp/RPM)
3.96:1 (0.85hp/RPM)
4.16:1 (0.85hp/RPM)
4.39:1 (0.85hp/RPM)
4.90:1 (0.80hp/RPM)
5.47:1 (0.75hp/RPM)
5.88:1 (0.70hp/RPM)

Max Input Speed 1800RPM

Adaptor Plate Options:

SAE0
SAE00

Control Options:

Mechanical
Electronic

Drive Plate Options:

18”
21”

Option for Gearbox Oil Cooler

Weight 2200KG

Drop Centre 450mm

Dimensions 1056x1280x1341 mm
