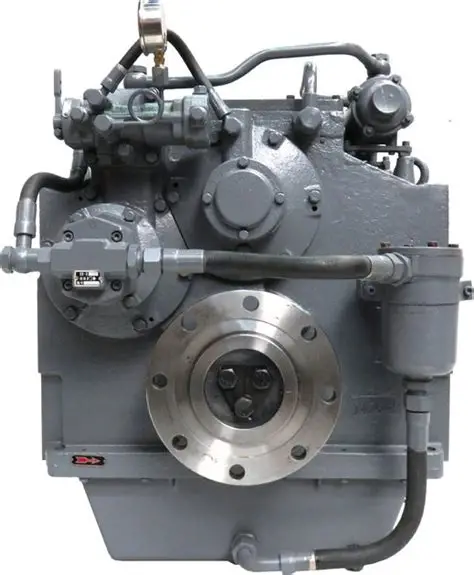

Advance MB270A Heavy Duty Marine Gearbox – Product Overview
The NEW Advance MB270A Heavy Duty Marine Gearbox 5.12:1 Reduction is a powerful marine hydraulic gearbox engineered for commercial marine propulsion applications where drivetrain strength, ratio accuracy, installation flexibility, and auxiliary equipment options are important.
Built for heavy-duty vessel use, the Advance MB270A supports commercial applications that require a properly matched gearbox between the engine and propeller shaft system. This model is configured with a 5.12:1 reduction ratio, making it suitable for marine propulsion setups requiring substantial speed reduction from the engine to the propeller.
For customers searching for an Advance MB270A marine gearbox, heavy duty marine hydraulic gearbox, commercial marine gearbox, or 5.12:1 reduction marine transmission, this unit provides a fitment-focused solution for professional marine applications.
Built for Commercial Marine Applications
The Advance MB270A Heavy Duty Marine Gearbox is designed for commercial vessels and heavy-duty propulsion environments where the gearbox must support dependable power transfer under demanding operating conditions.
Commercial marine applications may include:
- Workboats
- Fishing vessels
- Landing craft
- Passenger vessels
- Utility boats
- Tug and service vessels
- Commercial repower projects
- New heavy-duty propulsion installations
Its hydraulic transmission design supports controlled engagement and power transfer when matched with compatible engines, drive plates, adaptor plates, controls, and shafting systems.
5.12:1 Reduction Ratio Configuration
This product is specified with a 5.12:1 reduction ratio, one of the available MB270A ratio options.
A marine gearbox reduction ratio determines how engine speed is reduced before power reaches the propeller shaft. In heavy-duty commercial applications, correct ratio selection is essential for matching engine output, propeller sizing, vessel duty cycle, hull type, and operating requirements.
The 5.12:1 ratio is suitable for applications where the propulsion system requires high reduction for controlled propeller operation and correct drivetrain matching.
Available Advance MB270A ratio options include:
| Ratio Option | Rating |
|---|---|
| 4.05:1 | 0.20 hp/RPM |
| 4.53:1 | 0.20 hp/RPM |
| 5.12:1 | 0.20 hp/RPM |
| 5.50:1 | 0.18 hp/RPM |
| 5.95:1 | 0.15 hp/RPM |
| 6.39:1 | 0.12 hp/RPM |
| 6.82:1 | 0.12 hp/RPM |
This page is specifically for the 5.12:1 reduction configuration.
Heavy Duty Hydraulic Marine Transmission
The Advance MB270A is a heavy duty marine hydraulic gearbox designed to transfer engine power to the marine drivetrain while supporting controlled clutch engagement and reliable marine transmission operation.
Hydraulic marine gearboxes are commonly used in commercial vessels because they provide smooth engagement and durable power transfer when selected and installed correctly. The MB270A is suitable for operators who need a transmission designed for heavier marine propulsion requirements rather than light-duty recreational applications.
Key drivetrain considerations include:
- Engine output compatibility
- Gear ratio selection
- Maximum input speed
- Adaptor plate size
- Drive plate size
- Control type
- Shafting and propeller requirements
- Cooling and lubrication setup
- Optional PTO requirements
The gearbox should always be matched to the vessel’s engine, propeller, and duty cycle by a qualified marine technician or propulsion specialist.
Maximum Input Speed of 2500 RPM
The Advance MB270A marine gearbox is rated with a maximum input speed of 2500 RPM.
This specification is important when matching the gearbox to the engine. The selected engine should operate within the gearbox’s approved input speed range, and the final drivetrain setup should be verified according to the vessel’s propulsion requirements.
For commercial applications, matching input speed, reduction ratio, propeller load, and duty rating helps support dependable gearbox operation and proper propulsion system integration.
SAE Adaptor Plate Options
The NEW Advance MB270A Heavy Duty Marine Gearbox is available with SAE adaptor plate options to support compatibility with different engine installation requirements.
Adaptor plate options include:
- SAE1
- SAE0
The correct adaptor plate should be selected based on the engine flywheel housing, mounting configuration, and marine installation requirements. Choosing the right adaptor plate is essential for accurate engine-to-gearbox alignment and secure mechanical integration.
Mechanical and Electronic Control Options
The Advance MB270A 5.12:1 marine gearbox can be configured with different control options depending on the vessel’s control system.
Available control options include:
- Mechanical control
- Electronic control
Mechanical control setups are commonly used in traditional marine installations with cable or linkage-based control systems. Electronic control options may be suitable for vessels using electronic throttle and shift architecture.
Buyers should confirm the required control configuration before purchase to ensure compatibility with the vessel’s helm controls, control cables, electronic interface, and overall propulsion setup.
Drive Plate Options
The MB270A is available with multiple drive plate options to support different engine and gearbox connection requirements.
Available drive plate sizes include:
- 14” drive plate
- 16” drive plate
- 18” drive plate
Drive plate selection should be confirmed based on engine specification, flywheel configuration, torsional requirements, and gearbox compatibility. Correct drive plate matching helps support smooth torque transfer between the engine and gearbox.
Live PTO Option
The Advance MB270A Heavy Duty Marine Gearbox is available with an option for Live PTO.
A Live PTO option can support auxiliary power requirements in compatible commercial marine applications, depending on the vessel’s setup and equipment needs. This may be relevant for operators requiring power take-off capability for approved auxiliary systems.
The Live PTO requirement should be confirmed before ordering, as PTO configuration can affect gearbox specification, installation planning, auxiliary equipment compatibility, and final system layout.
Gearbox Oil Cooler Option
This gearbox also offers an option for a gearbox oil cooler.
A gearbox oil cooler may be required in commercial marine installations where operating conditions, duty cycle, engine output, and transmission load require additional temperature management. Cooling requirements should be confirmed based on the vessel’s propulsion system and manufacturer recommendations.
Correct gearbox cooling helps support stable operating conditions when the transmission is working under load.
Commercial Repower and Replacement Applications
The NEW Advance MB270A Heavy Duty Marine Gearbox 5.12:1 Reduction is suitable for commercial repower projects, gearbox replacement, and new vessel installations requiring a heavy-duty hydraulic transmission.
During a repower or replacement project, the gearbox must be matched carefully to the vessel’s engine, propeller, shafting, mounting arrangement, cooling system, control type, and duty cycle.
Buyers should confirm:
- Advance MB270A gearbox requirement
- 5.12:1 reduction ratio
- SAE0 or SAE1 adaptor plate
- Mechanical or electronic control
- 14”, 16”, or 18” drive plate
- Live PTO requirement
- Oil cooler requirement
- Engine output and input speed
- Shafting and propeller compatibility
- Vessel duty cycle and commercial application
Correct configuration helps support dependable marine propulsion system integration.
Installation and Compatibility Considerations
The Advance MB270A marine gearbox should be installed according to manufacturer specifications and matched carefully with the vessel’s propulsion system.
Important installation considerations include engine model, adaptor plate type, drive plate size, gearbox ratio, control configuration, mounting arrangement, shaft alignment, oil cooler requirements, PTO configuration, lubrication, and service access.
This gearbox should be installed by qualified marine technicians familiar with commercial marine propulsion systems. Proper installation helps reduce the risk of alignment issues, control mismatch, overheating, drivetrain vibration, or incorrect gearbox selection.
Worldwide Marine Equipment Supply
The NEW Advance MB270A Heavy Duty Marine Gearbox 5.12:1 Reduction is suitable for customers requiring professional commercial marine gearbox supply.
With experience shipping marine engines, transmissions, gearboxes, propulsion components, and spare parts worldwide, this gearbox can support vessel owners, shipyards, marine technicians, fleet operators, and repower specialists requiring dependable heavy-duty drivetrain solutions.
Technical Specifications
| Specification | Details |
| Product Name | NEW Advance MB270A Heavy Duty Marine Gearbox 5.12:1 Reduction |
| Manufacturer | Advance |
| Model | MB270A |
| Product Type | Heavy Duty Marine Hydraulic Gearbox |
| Primary Application | Commercial Marine Propulsion |
| Selected Ratio | 5.12:1 |
| Available Ratio Options | 4.05:1, 4.53:1, 5.12:1, 5.50:1, 5.95:1, 6.39:1, 6.82:1 |
| Rating Options | 0.20 hp/RPM, 0.18 hp/RPM, 0.15 hp/RPM, 0.12 hp/RPM depending on ratio |
| Maximum Input Speed | 2500 RPM |
| Adaptor Plate Options | SAE1, SAE0 |
| Control Options | Mechanical, Electronic |
| Drive Plate Options | 14”, 16”, 18” |
| Live PTO | Optional |
| Gearbox Oil Cooler | Optional |
| Weight | 675 kg |
| Drop Centre | 270 mm |
| Dimensions | 594 × 810 × 868 mm |
| Suitable Use | Commercial vessels, workboats, repower projects, new marine installations |
| Component Type | Heavy-duty commercial marine transmission |
Key Product Details
The NEW Advance MB270A Heavy Duty Marine Gearbox 5.12:1 Reduction is a configurable commercial marine hydraulic gearbox designed for heavy-duty drivetrain applications.
Key details include:
- Advance MB270A heavy-duty marine gearbox
- 5.12:1 reduction ratio
- 0.20 hp/RPM rating for the 5.12:1 option
- 2500 RPM maximum input speed
- SAE1 and SAE0 adaptor plate options
- Mechanical or electronic control options
- 14”, 16”, and 18” drive plate options
- Optional Live PTO
- Optional gearbox oil cooler
- 675 kg gearbox weight
- 270 mm drop centre
- 594 × 810 × 868 mm dimensions
- Designed for commercial marine applications
This gearbox should be selected only when the engine, vessel, control system, ratio, mounting arrangement, and drivetrain requirements match the MB270A specification.
Frequently Asked Questions
What is the Advance MB270A marine gearbox used for?
The Advance MB270A marine gearbox is used in commercial marine propulsion systems to transfer engine power through a heavy-duty hydraulic transmission to the propeller shaft system.
What reduction ratio is this gearbox configured with?
This product is specified with a 5.12:1 reduction ratio.
What ratio options are available for the Advance MB270A?
Available ratio options include 4.05:1, 4.53:1, 5.12:1, 5.50:1, 5.95:1, 6.39:1, and 6.82:1.
What is the maximum input speed?
The maximum input speed is 2500 RPM.
What adaptor plate options are available?
Adaptor plate options include SAE1 and SAE0.
What control options are available?
The gearbox can be configured with mechanical or electronic control options.
What drive plate sizes are available?
Drive plate options include 14”, 16”, and 18”.
Is Live PTO available?
Yes. The Advance MB270A has an option for Live PTO.
Is a gearbox oil cooler available?
Yes. A gearbox oil cooler is available as an option.
What is the weight of the gearbox?
The gearbox weighs 675 kg.
What is the drop centre?
The drop centre is 270 mm.
What are the dimensions?
The dimensions are 594 × 810 × 868 mm.
Should compatibility be verified before purchase?
Yes. Buyers should verify engine compatibility, ratio requirement, adaptor plate type, drive plate size, control option, PTO requirement, oil cooler requirement, shaft alignment, mounting arrangement, and vessel duty cycle before purchase.
