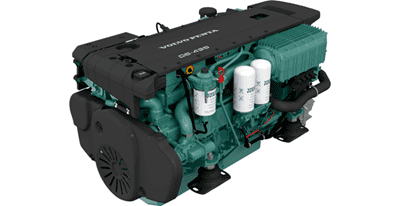

Volvo Penta D6-435 435hp Marine Diesel Engine – Professional Overview
The Volvo Penta D6-435 Marine Diesel Engine is a high-output marine propulsion engine built around a 5.5-liter inline six-cylinder diesel configuration.
The engine uses common-rail fuel injection, double overhead camshafts, and turbocharging to deliver its specified 435hp output. Its combination of power, compact dimensions, and marine-specific torque characteristics makes it suitable for vessels requiring substantial propulsion capacity.
The D6-435 is rated at 320kW (435hp) at 3500rpm according to the supplied technical specification.
Performance and Marine Power
The D6-435 is designed to provide high performance while maintaining controlled noise and vibration levels.
The supplied information highlights the engine’s balance shaft and optimized engine suspension as features intended to reduce vibration and improve onboard comfort.
Its marine torque characteristics are also designed to support load carrying, acceleration, and sustained cruising performance across varying operating conditions.
Compact and Robust Engine Design
Despite its 5.5-liter displacement and 435hp output, the D6-435 is described as a compact and lightweight engine for its power class.
The engine uses a rigid cast-iron cylinder block and cylinder head. Combined with electronically controlled fuel injection, this construction provides a robust foundation for marine propulsion applications.
A heavy-duty engine cover and accessible service points further support practical engine maintenance.
Common-Rail Fuel Injection and Turbocharging
The D6-435 uses an electronically controlled common-rail fuel injection system.
The high-pressure fuel system allows the engine control system to manage fuel delivery according to operating conditions. The supplied information identifies fuel efficiency as one of the benefits of this system.
The engine also uses turbocharging with a charge air cooler, supporting the engine’s 435hp output from its 5.5-liter displacement.
Electronic Control Systems
Electronic control capability is an integral part of the D6-435 configuration.
The supplied information identifies Electronic Vessel Control (EVC) as the control system and also references Volvo Penta’s Marine Commercial Control System for marine applications requiring integration with a vessel’s control system.
EVC can integrate engine and electronic functions with compatible onboard systems and optional features.
Marine Torque and Operating Characteristics
The D6-435 is designed around the torque characteristics required for marine propulsion.
The supplied information describes the engine as providing increased load-carrying capability, rapid acceleration, and the ability to maintain cruising speed under varying load and sea conditions.
These characteristics are particularly relevant to vessels where consistent propulsion performance is required rather than peak horsepower alone.
Fuel Efficiency
The D6-435 incorporates a high-pressure common-rail fuel injection system designed to manage fuel delivery efficiently.
The supplied technical specification lists fuel consumption at 220 g/kWh.
The electronic control system monitors multiple operating parameters to help manage overall fuel consumption during operation.
Cooling System
The D6-435 uses heat exchanger cooling.
This marine cooling arrangement separates the engine’s internal cooling circuit from the seawater cooling circuit through a heat exchanger.
The supplied specification identifies heat exchanger cooling as the engine’s cooling system.
Long-Term Serviceability
The D6-435 is designed with maintenance accessibility in mind.
The supplied information identifies easily accessible service points, a heavy-duty engine cover, and a fuel pre-filter as features supporting long-term engine care.
Volvo Penta also offers dedicated oil, lubrication, and coolant products intended to support ongoing marine engine maintenance.
Power Take-Off Capability
The D6-435 specification includes PTO capability.
Power take-off functionality can be relevant where auxiliary equipment needs to be driven from the engine, subject to the applicable configuration and installation requirements.
The exact PTO arrangement should be confirmed for the intended application.
Why Choose the Volvo Penta D6-435?
The Volvo Penta D6-435 435hp Marine Diesel Engine brings together high power, six-cylinder construction, common-rail injection, turbocharging, electronic control, and heat exchanger cooling.
Its 320kW / 435hp output, 5.5-liter displacement, and 3500rpm rated speed provide a defined performance profile for vessels requiring a high-output marine diesel engine.
The combination of compact dimensions, robust construction, electronic controls, and accessible service points also makes the engine suitable for demanding marine propulsion applications.
Who This Engine Is Best For
The D6-435 is suited to commercial operators, professional marine users, boat builders, repower customers, and recreational vessel owners whose vessels are designed for a 435hp marine diesel engine.
It is particularly relevant where a six-cylinder engine with electronic controls, turbocharging, heat exchanger cooling, and a 5.5-liter displacement fits the vessel’s propulsion requirements.
Compatibility should be assessed against the vessel, drivetrain, installation space, control system, cooling arrangement, and required power rating.
Technical Specification
| Specification | Details |
|---|---|
| Product Name | Volvo Penta D6-435 Marine Diesel Engine |
| Manufacturer | Volvo Penta |
| Model | D6-435 |
| Engine Type | Marine Diesel |
| Number of Cylinders | 6 |
| Displacement | 5.5 L |
| Crankshaft Power | 320 kW / 435 hp |
| Rated Speed | 3500 rpm |
| Aspiration | Turbo and compressor with charge air cooler |
| Fuel Injection | Common-rail fuel injection |
| Control System | Electronic Vessel Control |
| Cooling System | Heat exchanger cooling |
| Fuel Consumption | 220 g/kWh |
| Emission Compliance | IMO NOx Tier II, EU RCD Stage II, EPA Tier 3 |
| PTO Capability | Yes |
| Engine Configuration | Inline 6-cylinder |
Ordering, Compatibility, and Support
Before purchasing the Volvo Penta D6-435 Marine Diesel Engine, buyers should confirm that the vessel and existing propulsion system are compatible with its 435hp output and installation requirements.
Important considerations include engine dimensions, drivetrain compatibility, cooling arrangement, electronic controls, exhaust system, mounting configuration, and available installation space.
For repower projects, confirming these requirements before ordering helps ensure the selected engine is appropriate for the intended vessel.
Frequently Asked Questions
How much power does the Volvo Penta D6-435 produce?
The Volvo Penta D6-435 produces 435hp, equivalent to 320kW, at a rated speed of 3500rpm according to the supplied technical specification.
How many cylinders does the Volvo Penta D6-435 have?
The D6-435 uses an inline six-cylinder configuration with a 5.5-liter displacement. The six-cylinder design provides the engine’s specified 435hp output and marine torque characteristics.
What fuel injection system does the D6-435 use?
The D6-435 uses electronically controlled common-rail fuel injection. The system manages high-pressure fuel delivery and is designed to support efficient operation and consistent engine performance.
What cooling system does the Volvo Penta D6-435 use?
The supplied specification identifies heat exchanger cooling. This is the stated cooling configuration for the D6-435 marine diesel engine.
Does the D6-435 have electronic controls?
Yes. The supplied information identifies Electronic Vessel Control (EVC) as the engine’s control system and also references Volvo Penta’s Marine Commercial Control System for applicable commercial installations.
What is the fuel consumption of the D6-435?
The supplied technical specification lists fuel consumption at 220 g/kWh. Actual fuel consumption can vary depending on vessel configuration, operating load, speed, and operating conditions.
What type of applications is the D6-435 suitable for?
The D6-435 is intended for compatible marine propulsion applications requiring 435hp. This can include commercial and recreational vessels, provided the vessel, drivetrain, cooling, controls, and installation requirements are compatible with the engine.
