Description

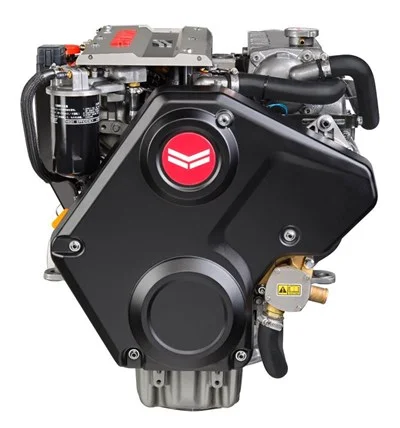

Overview of the Yanmar 3JH40 Marine Engine

The YANMAR 3JH40 Marine Diesel Engine 40hp is part of Yanmar’s JH-CR engine series, developed to provide reliable diesel propulsion for smaller recreational and commercial vessels.

The engine produces 40 horsepower at 3000 rpm and features a 3-cylinder diesel configuration with 1.642 liters of displacement, providing efficient power output for sailing and cruising vessels.

One of the defining features of the engine is its Bosch common-rail fuel injection system, which precisely controls fuel delivery for improved combustion efficiency and reduced emissions.

Yanmar introduced the 3JH40 to bring advanced electronically managed diesel technology to smaller marine engines, allowing sailboats and compact vessels to benefit from modern diesel efficiency.

Where This Engine Is Commonly Used

The YANMAR 3JH40 Marine Diesel Engine 40hp is widely used in vessels that require reliable auxiliary diesel propulsion.

Common applications include:

• Sailing yachts and cruising sailboats

• Catamarans and multihull sailboats

• Coastal cruising boats

• Small displacement motorboats

• Charter sailboats

• Light commercial marine vessels

The engine is especially popular in sailing yachts up to approximately 45 feet, where dependable auxiliary power is needed for maneuvering, harbor navigation, and long-distance cruising.

Because of its compact size and efficient performance, the 3JH40 is frequently installed in both new boat builds and marine repower projects.

Engine Design and Build Quality

The YANMAR 3JH40 Marine Diesel Engine 40hp is engineered with marine-grade components designed to withstand long-term marine operation.

Key design features include:

• 3-cylinder 4-stroke diesel engine

• 1.642-liter displacement

• Bosch common-rail direct injection system

• Freshwater cooling with heat exchanger

• Naturally aspirated diesel configuration

• 12-volt high-output alternator

The engine also incorporates advanced electronic control systems that help optimize combustion efficiency while maintaining smooth engine operation.

Through the use of common-rail technology, the engine delivers lower fuel consumption, reduced emissions, and quieter operation compared with earlier mechanical diesel engines.

These features make the 3JH40 a reliable propulsion option for sailboats and small marine vessels.

Why Boat Owners Choose This Engine

Many boat owners select the YANMAR 3JH40 Marine Diesel Engine 40hp because it offers a combination of compact installation size, efficient fuel consumption, and dependable marine performance.

One key advantage of the engine is its efficient fuel usage, which allows vessels to cruise longer distances with reduced operating costs.

Another advantage is the engine’s low vibration and quiet operation, which improves onboard comfort during extended cruising.

Boat owners also appreciate the engine’s compact footprint, which simplifies installation in sailboats where engine space is often limited.

Yanmar has a long reputation for producing reliable marine diesel engines, making the 3JH40 a trusted propulsion option for recreational and commercial vessels.

Is This Engine Right for Your Boat?

The YANMAR 3JH40 Marine Diesel Engine 40hp is best suited for vessels that require reliable auxiliary diesel propulsion with moderate horsepower.

This engine is ideal for:

• Sailing yacht owners

• Coastal cruising boat operators

• Boat builders installing compact diesel engines

• Owners repowering older sailboat engines

• Commercial operators running small marine vessels

Because of its compact dimensions and efficient diesel performance, the 3JH40 is frequently selected for sailboats and displacement hull vessels.

Technical Specifications

The YANMAR 3JH40 Marine Diesel Engine 40hp is designed as a compact inboard diesel propulsion system.

Key specifications include:

• Engine type: 3-cylinder 4-stroke diesel

• Power output: 40 hp (29.4 kW)

• Rated speed: 3000 rpm

• Displacement: 1.642 L

• Fuel system: Bosch common-rail direct injection

• Aspiration: Naturally aspirated

• Cooling system: Freshwater cooling with heat exchanger

• Alternator output: 12V – 125A

• Dry weight: 192 kg

• Dimensions: 774 × 580 × 632 mm

These specifications allow the engine to deliver efficient and reliable propulsion for smaller marine vessels.

Availability and Support

Marine engines are essential components of vessel reliability and performance. The YANMAR 3JH40 Marine Diesel Engine 40hp is supported by Yanmar’s global marine service network, which provides technical support, maintenance services, and genuine replacement components.

Authorized Yanmar dealers worldwide offer servicing and support for the JH-CR engine lineup.

Boat owners researching the 3JH40 often compare it with other engines in the Yanmar JH series, including models such as the 3JH40, 4JH45, 4JH57, and 4JH80, which provide different horsepower ranges for various vessel sizes.

Exploring related marine diesel engines helps boat owners select the propulsion system that best matches their vessel’s size, weight, and performance requirements.

Frequently Asked Questions

What horsepower does the Yanmar 3JH40 produce?

The Yanmar 3JH40 produces 40 horsepower (29.4 kW) at 3000 rpm, providing reliable auxiliary propulsion for sailboats and smaller marine vessels.

What type of engine is the Yanmar 3JH40?

The engine is a 3-cylinder 4-stroke marine diesel engine equipped with electronically controlled common-rail fuel injection technology.

What boats commonly use the Yanmar 3JH40?

The engine is commonly used in sailing yachts, catamarans, cruising sailboats, and small displacement motorboats.

Is the Yanmar 3JH40 fuel efficient?

Yes. The common-rail fuel injection system helps improve combustion efficiency, resulting in lower fuel consumption and reduced emissions.

How heavy is the Yanmar 3JH40 engine?

The engine has a dry weight of approximately 192 kg (423 lbs), making it suitable for installation in compact engine compartments found in sailboats.

WINNER OF THE MIAMI 2018 INNOVATION AWARD FOR THE INBOARD ENGINE CATEGORY.

YANMAR introduces the 3JH40 as the world’s smallest common rail inboard marine diesel engine in displacement, dimensions, and weight.

The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.

With an output of 40 MHP @ 3000 rpm (29.4 kW @ 3000 rpm), the 3JH40 is the smallest common rail inboard marine diesel in:
