Description

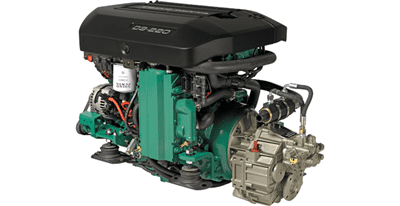

Volvo Penta D3-220 – Professional Overview
The Volvo Penta D3-220 marine diesel engine 220hp is part of Volvo Penta’s D3 marine diesel engine family. It uses a five-cylinder, 2.4-liter diesel configuration with an aluminum cylinder block and cylinder head.
The engine combines a common-rail fuel system with piezo-electric injectors, double overhead camshafts, and Variable Geometry Turbocharging. Together, these technologies are designed to provide responsive torque and efficient power delivery across the operating range.
Its compact and symmetrical construction also makes the D3 platform practical for marine installations where engine-room space is restricted. The aluminum construction contributes to a comparatively low engine weight for the power category.
For repower projects, commercial applications, and recreational vessels requiring a modern marine diesel, the D3-220 provides a combination of compact packaging, electronic engine management, and diesel torque characteristics.
Performance, Torque, and Marine Applications
The D3-220 is designed around the high torque characteristics expected from a modern marine diesel engine.
Its Variable Geometry Turbo (VGT) adjusts turbocharger operation according to engine conditions, supporting responsive acceleration and torque delivery. The supplied product information specifically identifies strong torque during acceleration as one of the key characteristics of the engine.
High torque at lower engine speeds is particularly useful during maneuvering, acceleration onto plane, and operation under heavier loads. It can also provide useful propulsion characteristics when a vessel needs responsive power in confined waters or challenging operating conditions.
The engine is rated at 4000 RPM according to the supplied technical information. Its 2.4-liter displacement and five-cylinder configuration provide the foundation for the stated 220hp model designation.
Efficient Fuel and Electronic Engine Management
The D3-220 uses an electronically controlled common-rail fuel injection system with piezo-electric injectors.
Common-rail technology allows the engine control system to manage fuel delivery precisely according to operating conditions. The supplied information identifies the high-tech injection system and electronic monitoring of engine parameters as contributors to fuel efficiency.
The engine also incorporates Volvo Penta Electronic Vessel Control (EVC). This system integrates engine electronics with the vessel’s control and monitoring functions and can support features such as Single-Lever Mode, Cruise Control, Glass Cockpit integration, and other compatible options.
The e-Key is identified as standard in the supplied product information.
Compact Construction and Installation
The D3-220 has been designed to provide substantial power from a relatively compact engine package.
Its aluminum cylinder block and cylinder head reduce weight while maintaining the structural design required for marine propulsion. The fully symmetrical engine layout can also simplify installation compared with less compact engine configurations.
The engine’s compact dimensions can be particularly useful during repowering projects where the replacement engine must fit within an existing engine compartment.
However, physical fitment should always be confirmed against the specific vessel, existing mounts, drivetrain arrangement, exhaust system, electrical configuration, and required accessories before ordering.
Cooling and Long-Term Durability
The Volvo Penta D3-220 uses freshwater cooling through a heat exchanger, according to the supplied specifications.
Freshwater cooling helps reduce internal exposure to seawater and allows the engine to maintain a controlled operating temperature. For marine applications, this is an important part of protecting internal engine components and supporting long-term operating reliability.
The engine is described as having a solid and robust construction, while the heavy-duty engine cover and accessible service points are designed to support practical maintenance.
Routine maintenance remains essential for any marine diesel engine. Fuel quality, lubrication, cooling-system condition, filters, belts, exhaust components, and other service items should be maintained according to the applicable Volvo Penta service requirements.
Who the D3-220 Is Best Suited For
The Volvo Penta D3-220 is intended for buyers who need a modern diesel propulsion system with a strong power-to-weight ratio and electronic engine management.
It can be relevant to:
- Boat owners undertaking a marine diesel repower
- Vessel builders requiring a compact five-cylinder diesel
- Recreational powerboats requiring approximately 220hp
- Commercial and utility vessels requiring responsive diesel propulsion
- Marine professionals replacing older propulsion systems
- Owners prioritizing compact installation dimensions and efficient diesel operation
Compatibility should be confirmed based on the complete propulsion configuration rather than horsepower alone. Transmission, shaft or sterndrive arrangement, engine mounts, controls, exhaust system, cooling configuration, and electrical requirements can all affect installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Volvo Penta |
| Model | D3-220 |
| Engine Type | Marine diesel engine |
| Rated Power | 220 hp |
| Rated Speed | 4000 RPM |
| Displacement | 2.4 L |
| Cylinders | 5, in-line |
| Fuel Injection | Electronically controlled common-rail |
| Injectors | Piezo-electric |
| Aspiration | Variable Geometry Turbo with charge-air cooler |
| Valve Train | Double overhead camshafts |
| Cylinder Block | Aluminum |
| Cylinder Head | Aluminum |
| Control System | Volvo Penta Electronic Vessel Control (EVC) |
| Cooling System | Heat exchanger / freshwater cooling |
| Fuel Consumption | 235 g/kWh |
| Emission Compliance | IMO NOx Tier II, EU RCD Stage II, EPA Tier 3 |
| Rating | Rating 5 |
Note: The supplied source contains an internal conflict in the technical table: it lists 162 kW but also states 110 hp for crankshaft power, while the product name identifies the engine as D3-220. Because you instructed that conflicts should be resolved according to the product name and factual original information, the product description uses the 220hp model designation rather than reproducing the conflicting 110hp figure.
Ordering, Fitment, and Support
Before ordering a D3-220, buyers should verify the intended application and installation configuration. A marine diesel engine’s compatibility depends on more than horsepower and displacement.
Important considerations include the available engine compartment, mounting arrangement, transmission compatibility, exhaust routing, cooling system, fuel system, control system, electrical requirements, and propulsion configuration.
For repower applications, comparing the existing engine’s mounting and drivetrain arrangement with the D3-220 installation requirements can help identify the components required for a successful conversion.
Customers can also explore related marine diesel engines, Volvo Penta propulsion products, and complementary marine drivetrain components when planning a complete repower project.
Frequently Asked Questions
How much power does the Volvo Penta D3-220 produce?
The Volvo Penta D3-220 is identified as a 220hp marine diesel engine. It uses a 2.4-liter, five-cylinder configuration with common-rail fuel injection and Variable Geometry Turbocharging to provide responsive marine propulsion performance.
What type of fuel system does the D3-220 use?
The D3-220 uses an electronically controlled common-rail fuel injection system with piezo-electric injectors. The system allows electronic management of fuel delivery and supports the engine’s emphasis on efficient combustion and responsive performance.
How many cylinders does the Volvo Penta D3-220 have?
The engine has five cylinders arranged in-line. Its 2.4-liter displacement and five-cylinder configuration provide the basis for the compact diesel engine’s power and torque characteristics.
Does the D3-220 use freshwater cooling?
Yes. The supplied specifications identify a heat-exchanger cooling system, while the product information states that freshwater cooling is standard. This arrangement helps manage engine temperature and reduces internal exposure to seawater.
What is the rated speed of the D3-220?
The supplied technical information lists a rated engine speed of 4000 RPM. This should be considered alongside the complete propulsion configuration and operating requirements of the vessel.
Is the D3-220 suitable for a repower?
The compact and symmetrical design can make the D3-220 a potential option for marine repowering projects. However, compatibility must be confirmed based on the vessel’s existing mounts, transmission, exhaust, controls, electrical system, cooling arrangement, and available installation space.
What electronic controls are available with the D3-220?
The supplied information identifies Volvo Penta Electronic Vessel Control (EVC) as the engine’s control system, with the e-Key listed as standard. Compatible EVC functions can include features such as Single-Lever Mode, Cruise Control, and Glass Cockpit integration.
