Description

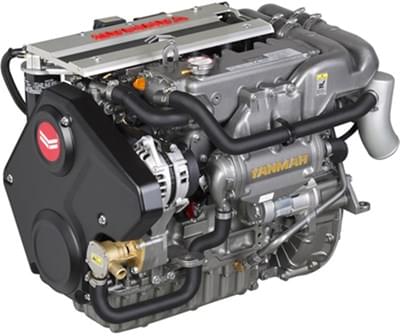

JH Series 28.7–92kW (39–125HP) Three and four-cylinder direct injection diesels with heat exchanger cooling. Choices of natural aspiration, turbocharged and turbo/aftercooler models, with straight drive or angle drive transmissions. Smaller horsepower models are also offered with Saildrive units. JH Series 4JH4-TE (75HP/55kW) ighly efficient and light in weight, this tough four-cylinder diesel is available with straight or angle drive, mechanically or hydraulically activated.
| Technical Specification | Value |
|---|---|
| Rated Output | 80.9 kW / 110 mhp |
| Rated Speed | 3200 rpm |
| Displacement | 2.000 L (122 cu in) |
| Cylinders | 4 in-line |
| Bore × Stroke | 84 mm × 90 mm |
| Type | 4-stroke, vertical, water-cooled diesel engine |
| Emission Compliance | EU: RCD 2, BSO II, EMC • US: EPA Tier 3 |
| Warranty | 2 + 3 year extended warranty |
