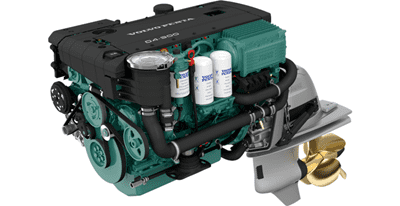

VOLVO PENTA AQUAMATIC STERNDRIVE D4-300
Volvo Penta Aquamatic Sterndrive D4-300 is a totally integrated package, powered by the in-line 4-cylinder, 3.7-liter, common-rail diesel engine with double overhead camshafts.
LONG LIFE
The Volvo Penta D4 is a refined version of a proven, renowned engine concept. This strong, solid and robust engine delivers excellent reliability, maximal uptime and long service life.
COMPACT AND LIGHTWEIGHT
The engine is ultra-compact for its swept volume and fully symmetrical, making it very easy to install. Aluminum cylinder block and cylinder head gives the engine extremely low weight for its power output.
UNIQUE MARINE TORQUE
The unique marine torque of the Volvo Penta diesel engines stands out among the competition by offering increased load-carrying capability, rapid acceleration, and the ability to maintain a high cruising speed, irrespective of load or sea state.
LOW FUEL CONSUMPTION
The high-tech fuel injection system combined with the advanced transmission and the Aquamatic Sterndrive make the engine highly fuel efficient.
ELECTRONIC CONTROL SYSTEMS
Volvo Penta offers two type-approved systems for on-board electronic control. Electronic Vessel Control fully integrates the engines, electronics and a range of optional features. Marine Commercial Control System is an open system that is easily integrated into the ship’s control system.
FRESHWATER COOLING
The engine is fitted with freshwater cooling as standard. This reduces internal corrosion and enables the engine to maintain a consistent and optimal working temperature under all conditions.
TECHNICAL FEATURES
– Electronically controlled common-rail fuel system – Electronic steering, enabling features such as joystick maneuvering – Compact dimensions – Electronic controls are standard – Variable Geometry Turbo (VGT)
– Solid and robust engine design – Heavy-duty engine cover – Easily accessible service points – Instrumentation with full Electronic Vessel Control functionality.
| Technical Specification | Value |
|---|---|
| Rated rpm | 3500 |
| Crankshaft Power (kW) | 221 kW |
| Crankshaft Power (hp) | 301 hp |
| Rating | Rating 5 |
| Emission compliance | IMO NOx Tier II, EU RCD Stage II, EPA Tier 3 |
| Number of cylinders | 4 |
| Aspiration | Turbo and compressor with charge air cooler |
| High-pressure fuel injection | Common-rail fuel injection |
| Control system | Electronic Vessel Control |
| Cooling system | Heat exchanger cooling |
| Fuel consumption | 221 g/kWh |
| Displacement | 3.7 L |
